bntables.h File Reference

#include "encode.h"
#include "gpu.h"
#include <cstdint>
#include "data/pmj/keys.txt"
#include "data/pmj/ranks.txt"
#include "data/sobol/keys.txt"
#include "data/sobol/ranks.txt"
#include "data/lattice/keys.txt"
#include "data/lattice/ranks.txt"

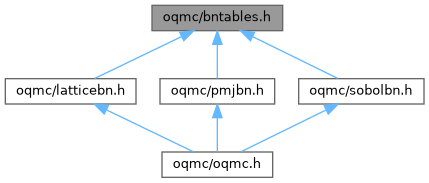

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	oqmc::bntables::TableReturnValue
	Return type for table value. More...

Functions
template<int XBits, int YBits, int ZBits>
constexpr TableReturnValue	oqmc::bntables::tableValue (std::uint16_t pixel, std::uint16_t shift, const std::uint32_t keyTable[], const std::uint32_t rankTable[])
	Lookup value pair from table.

Variables
constexpr auto	oqmc::bntables::xBits = 8
	256 pixels in x.
constexpr auto	oqmc::bntables::yBits = 8
	256 pixels in y.
constexpr auto	oqmc::bntables::size = 1 << (xBits + yBits)
	2^16 table size.
constexpr std::uint32_t	oqmc::bntables::pmj::keyTable []
	Optimised blue noise key table for pmj.
constexpr std::uint32_t	oqmc::bntables::pmj::rankTable []
	Optimised blue noise rank table for pmj.
constexpr std::uint32_t	oqmc::bntables::sobol::keyTable []
	Optimised blue noise key table for sobol.
constexpr std::uint32_t	oqmc::bntables::sobol::rankTable []
	Optimised blue noise rank table for sobol.
constexpr std::uint32_t	oqmc::bntables::lattice::keyTable []
	Optimised blue noise key table for lattice.
constexpr std::uint32_t	oqmc::bntables::lattice::rankTable []
	Optimised blue noise rank table for lattice.

Detailed Description

Pre-computed and optimised blue noise tables used to decorrelate between pixels, and extend the base sampler implementations with blue noise properties. A generalised method extending 'Lessons Learned and Improvements when Building Screen-Space Samplers with Blue-Noise Error Distribution.' by Laurent Belcour and Eric Heitz was used to optimise the tables. Lookups for the table can apply constant random shifts for different domains, allowing a single table to be re-used for N domains.

Function Documentation

tableValue()

template<int XBits, int YBits, int ZBits>

constexpr TableReturnValue oqmc::bntables::tableValue ( std::uint16_t  pixel, std::uint16_t  shift, const std::uint32_t  keyTable[], const std::uint32_t  rankTable[]  )

constexpr

Given an encoded pixel coordinate and an encoded pixel shift, decode the values and add the shift to the coordinate to compute an index. Using the index lookup a key and rank value pair from the input tables.

Template Parameters

XBits	Precision along the X axis used for encoding.
YBits	Precision along the Y axis used for encoding.
ZBits	Precision along the Z axis used for encoding.

Parameters

[in]	pixel	Encoded pixel coordinate for lookup.
[in]	shift	Encoded pixel shift for lookup.
[in]	keyTable	Table of key values.
[in]	rankTable	Table of rank values.

Returns

Key and rank pair from lookup.

Here is the caller graph for this function:

Variable Documentation

keyTable [1/3]

constexpr std::uint32_t oqmc::bntables::pmj::keyTable[]

inlineconstexpr

Initial value:

= {
}

rankTable [1/3]

constexpr std::uint32_t oqmc::bntables::pmj::rankTable[]

inlineconstexpr

Initial value:

= {
}

keyTable [2/3]

constexpr std::uint32_t oqmc::bntables::sobol::keyTable[]

inlineconstexpr

Initial value:

= {
}

rankTable [2/3]

constexpr std::uint32_t oqmc::bntables::sobol::rankTable[]

inlineconstexpr

Initial value:

= {
}

keyTable [3/3]

constexpr std::uint32_t oqmc::bntables::lattice::keyTable[]

inlineconstexpr

Initial value:

= {
}

rankTable [3/3]

constexpr std::uint32_t oqmc::bntables::lattice::rankTable[]

inlineconstexpr

Initial value:

= {
}
