Namespaces
namespace	bntables

namespace	pcg

Classes
struct	EncodeKey
	Key to encode pixel coordinates. More...

class	SamplerInterface
	Public sampler API. More...

struct	State64Bit
	Generic sampler state type. More...

Typedefs
using	LatticeSampler = SamplerInterface< LatticeImpl >
	Rank one lattice sampler.

using	LatticeBnSampler = SamplerInterface< LatticeBnImpl >
	Blue noise variant of lattice sampler.

using	PmjSampler = SamplerInterface< PmjImpl >
	Low discrepancy pmj sampler.

using	PmjBnSampler = SamplerInterface< PmjBnImpl >
	Blue noise variant of pmj sampler.

using	SobolSampler = SamplerInterface< SobolImpl >
	Owen scrambled sobol sampler.

using	SobolBnSampler = SamplerInterface< SobolBnImpl >
	Blue noise variant of sobol sampler.

Functions
template<int XBits, int YBits, int ZBits>
std::uint16_t	encodeBits16 (EncodeKey key)
	Encode a key value into 16 bits.

template<int XBits, int YBits, int ZBits>
EncodeKey	decodeBits16 (std::uint16_t value)
	Decode a value back into a key.

float	uintToFloat (std::uint32_t value)
	Convert an integer into a [0, 1) float.

constexpr std::uint32_t	randomDigitScramble (std::uint32_t value, std::uint32_t hash)
	Random digit scramble an element in a sequence.

template<int Table, int Depth>
void	shuffledScrambledLookup (std::uint32_t index, std::uint32_t hash, const std::uint32_t table[][Table], std::uint32_t sample[Depth])
	Compute a randomised value from a pre-computed table.

std::uint16_t	sobolReversedIndex (std::uint16_t index, int dimension)
	Compute sobol sequence value at an index with reversed bits.

constexpr std::uint32_t	scrambleAndReverse (std::uint32_t value, std::uint32_t seed)
	Permute an input integer and reverse the bits.

template<int Depth>
void	shuffledScrambledSobol (std::uint32_t index, std::uint32_t seed, std::uint32_t sample[Depth])
	Compute a randomised sobol sequence value.

constexpr std::uint32_t	laineKarrasPermutation (std::uint32_t value, std::uint32_t seed)
	Laine and Karras style permutation.

constexpr std::uint32_t	reverseAndShuffle (std::uint32_t value, std::uint32_t seed)
	Reverse input bits and shuffle order.

constexpr std::uint32_t	shuffle (std::uint32_t value, std::uint32_t seed)
	Compute a hash based owen scramble.

constexpr std::uint32_t	uintToRange (std::uint32_t value, std::uint32_t range)
	Compute an unsigned integer within 0-bounded half-open range.

constexpr std::uint32_t	uintToRange (std::uint32_t value, std::uint32_t begin, std::uint32_t end)
	Compute an unsigned integer within half-open range.

constexpr std::uint32_t	rotate (std::uint32_t value, std::uint32_t distance)
	Rotate an integer a given distance.

constexpr std::uint32_t	latticeReversedIndex (std::uint32_t index, int dimension)
	Compute a rank 1 lattice value at an index with reversed bits.

template<int Depth>
constexpr void	shuffledRotatedLattice (std::uint32_t index, std::uint32_t patternId, std::uint32_t sample[Depth])
	Compute a randomised rank 1 lattice value.

constexpr std::uint32_t	reverseBits32 (std::uint32_t value)
	Reverse bits of an unsigned 32 bit integer.

constexpr std::uint16_t	reverseBits16 (std::uint16_t value)
	Reverse bits of an unsigned 16 bit integer.

constexpr std::uint32_t	rotateBits (std::uint32_t value, std::uint32_t distance)
	Rotate bits in an integer value.

constexpr std::uint32_t	rotateBytes (std::uint32_t value, int distance)
	Rotate bytes in an integer value.

constexpr int	computeIndexKey (int index)
	Compute 16-bit key from index.

constexpr int	computeIndexId (int index)
	Compute new 16-bit index from index.

void	stochasticPmjInit (int nsamples, std::uint32_t table[][4])
	Initialise a table with a progressive mult-jittered (0,2) sequence.

Variables
constexpr auto	floatOneOverUintMax = 2.3283064365386962890625e-10f
	0x1p-32

constexpr auto	floatOneMinusEpsilon = 0.999999940395355224609375f
	max flt

Function Documentation

◆ sobolReversedIndex()

std::uint16_t oqmc::sobolReversedIndex	(	std::uint16_t	index,
		int	dimension
	)

inline

Given a 16 bit index, where the order of bits in the index have been reversed, compute a sobol sequence value to 16 bits of precision for a given dimension. Dimensions must be within the range [0, 4).

Parameters

[in]	index	Bit reversed index of element.
[in]	dimension	Dimension of sobol sequence.

Returns: Sobol sequence value.

Here is the caller graph for this function:

◆ scrambleAndReverse()

constexpr std::uint32_t oqmc::scrambleAndReverse	(	std::uint32_t	value,
		std::uint32_t	seed
	)

constexpr

Given an input integer value, perform a Laine and Karras style permutation and reverse the resulting bits. The permutation can be randomised with a given seed value. This will be equivalent to an Owen scramble when the input bits of the integer are already reversed.

Parameters

[in]	value	Input integer value.
[in]	seed	Seed to change the permutation.

Returns: Permuted, reversed value.

Here is the caller graph for this function:

◆ shuffledScrambledSobol()

template<int Depth>

void oqmc::shuffledScrambledSobol	(	std::uint32_t	index,
		std::uint32_t	seed,
		std::uint32_t	sample[Depth]
	)

inline

Given an index and a seed, compute an Owen scrambled sobol sequence value. The index will be shuffled in a manner that is progressive friendly. The value can be multi-dimensional. For a given sequence, the seed value must be constant. An index greater than 2^16 will repeat values.

Template Parameters

Depth Dimensional space of output, up to 4 dimensions.

Parameters

[in]	index	Input index of sequence value.
[in]	seed	Seed to randomise the sequence.
[out]	sample	Randomised sequence value.

◆ rotate()

constexpr std::uint32_t oqmc::rotate	(	std::uint32_t	value,
		std::uint32_t	distance
	)

constexpr

Given a 32 bit unsigned integer value, offset the value a given distance, and rely on integer overflow for the value to wrap around. When applied to elements in a lattice, this represents a toroidal shift or rotation, upon the range of representable values. When the distance is constant for all elements, this can be used to efficiently randomise the values.

Parameters

[in]	value	Integer value to offset.
[in]	distance	Distance to offset value.

Returns: Rotated integer value.

Here is the caller graph for this function:

◆ latticeReversedIndex()

constexpr std::uint32_t oqmc::latticeReversedIndex	(	std::uint32_t	index,
		int	dimension
	)

constexpr

Given a 32 bit index, where the order of bits in the index have been reversed, compute a rank 1 lattice value to 32 bits of precision for a given dimension. Dimensions must be within the range [0, 4).

Parameters

[in]	index	Bit reversed index of element.
[in]	dimension	Dimension of rank 1 lattice.

Returns: Rank 1 lattice value.

Here is the caller graph for this function:

◆ shuffledRotatedLattice()

template<int Depth>

constexpr void oqmc::shuffledRotatedLattice	(	std::uint32_t	index,
		std::uint32_t	patternId,
		std::uint32_t	sample[Depth]
	)

constexpr

Given an index and a patternId, compute a rank 1 lattice value. The index will be shuffled in a manner that is progressive friendly. The value can be multi-dimensional. For a given lattice, the patternId value must be constant.

Template Parameters

Depth Dimensional space of output, up to 4 dimensions.

Parameters

[in]	index	Input index of lattice value.
[in]	patternId	Seed to randomise the lattice.
[out]	sample	Randomised lattice value.

◆ computeIndexKey()

constexpr int oqmc::computeIndexKey ( int index )

constexpr

Given a sample index, compute a key value based on the top 16-bits of the integer range. Use computeIndexId() to compute the corrosponding new index to pair with the key.

Parameters

[in] index Sample index.

Returns: 16-bit Key value.

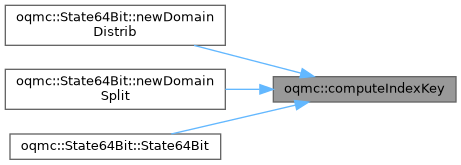

Here is the caller graph for this function:

◆ computeIndexId()

constexpr int oqmc::computeIndexId ( int index )

constexpr

Given a sample index, compute a new index value based on the bottom 16-bits of the integer range. Use computeIndexKey() to compute the corrosponding key value to pair with the new index.

Parameters

[in] index Sample index.

Returns: New 16-bit index.

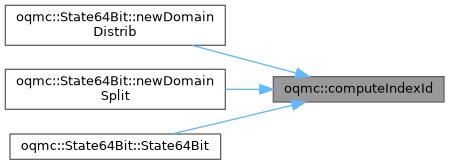

Here is the caller graph for this function:

◆ stochasticPmjInit()

void oqmc::stochasticPmjInit	(	int	nsamples,
		std::uint32_t	table[][4]
	)

inline

Given a data array and size, compute the corresponding progressive multi-jittered (0,2) sequence value for each element of the array. Each element in the array is a 4 dimensional sample. Number of samples must be larger than zero and no more than 2^16.

Parameters

[in]	nsamples	Size of the table array.
[out]	table	Output array of 4 dimensional samples.

Variable Documentation

◆ floatOneOverUintMax

constexpr auto oqmc::floatOneOverUintMax = 2.3283064365386962890625e-10f

constexpr

◆ floatOneMinusEpsilon

constexpr auto oqmc::floatOneMinusEpsilon = 0.999999940395355224609375f

constexpr
